The ST connectors are offered in MM or SM performances with PC polishing method. It is delivered with standard 2.0/3.0 mm cable or 0.9 mm fiber boots.

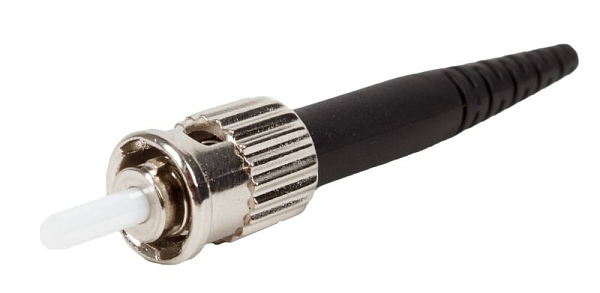

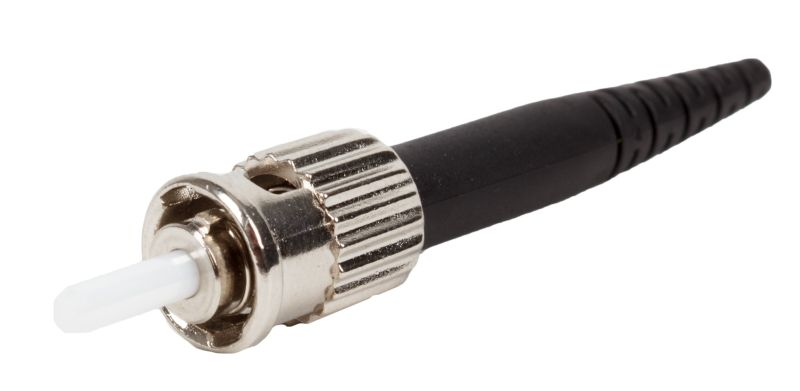

ST Connector
- Coupling nut radial track minimizes the rotation needed to mate the connector
- One piece body construction simplifies fields assembly
- Single mode and multimode versions available
- Accommodates tight and loose tube buffer cables with jacket up to 3.1 mm
- Ceramic ferrules are configured for easy hand or machine PC and "Ultra" PC polishing method
- Metal housing with zirconia ferrule

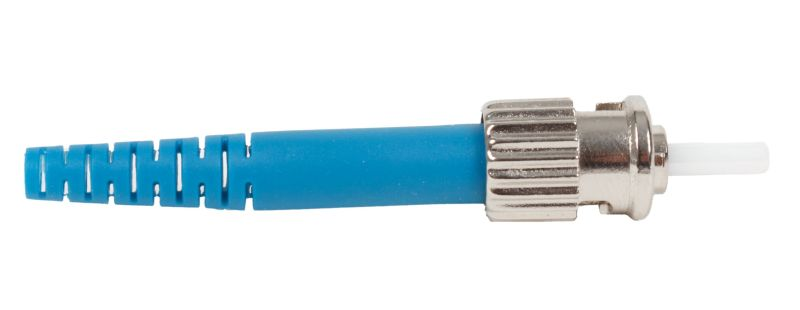

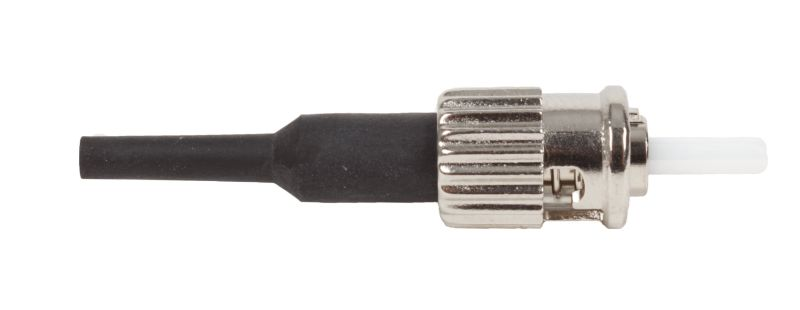

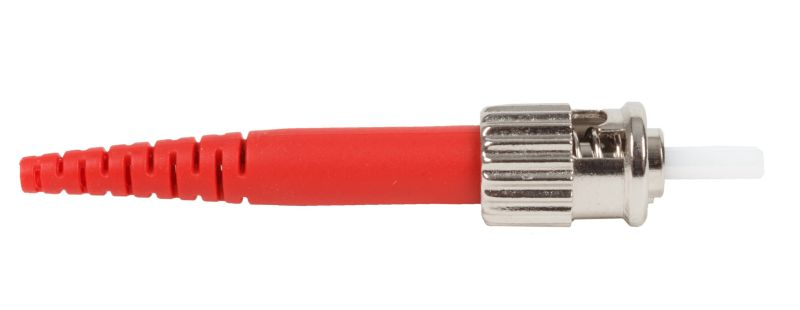

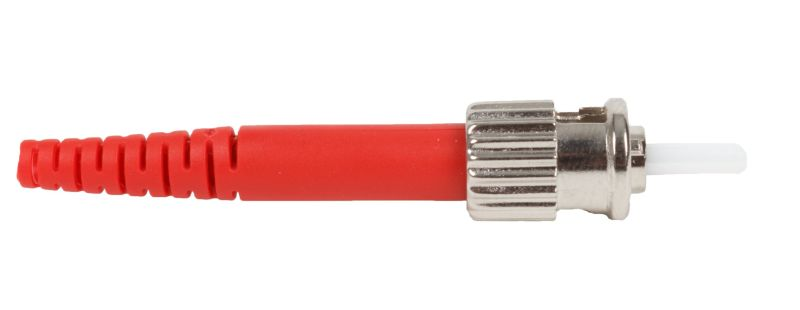

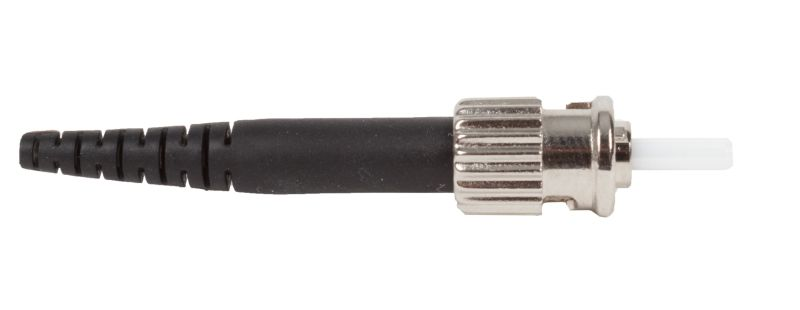

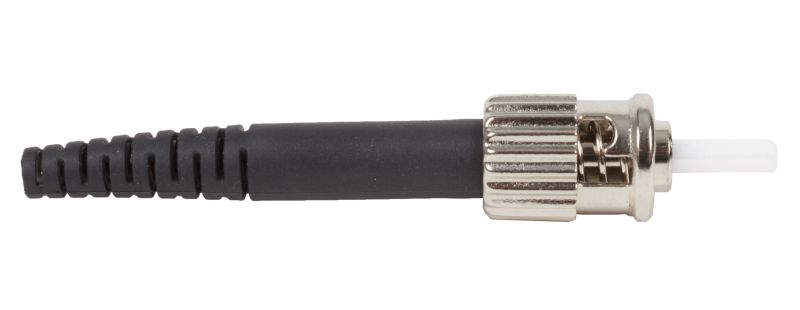

- Boot options for 2.0 / 3.0 mm cable and 900 micron fiber
- Universal dust cap (fits, ST, SC, FC)
Insertion loss (IL) typ: 0.25 dB
Return loss (RL) > 50 dB for jumper length up to 3 m
Strain relief 100 N
Operating temperature -40 °C to +80 °C, conditioned by type of cable
Durability min 500 cycles
Assembly procedure glue and polish
Connection physical contact
Lock mechanism bayonet lock
Standards Bellcore GR-326, TIA 568A
Ferrule material full ceramic zirconia
Connector material zinc alloy, nickel plated, thermoplastic rubber
- LAN, WAN
- Measuring Technique
- Industrial networks
- Utilities
- Railways
