Fibre optic cable with full protection against rodents for direct burial installation.

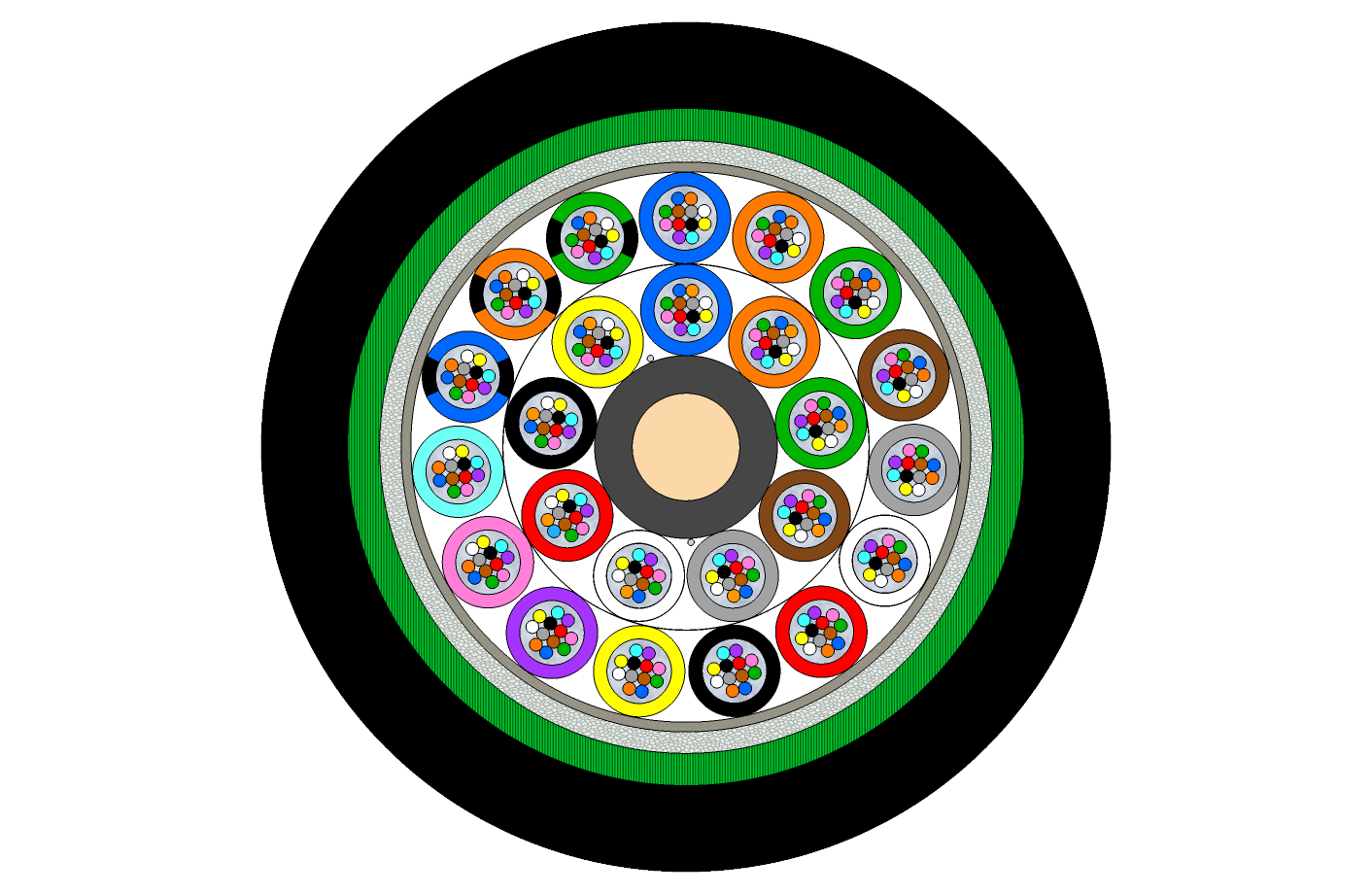

Indoor/Outdoor CST Armoured Multitube Cable 288F (NC)
| Fiber count | 288 |
| Fiber Type | G.652.D, G.657.A1, G.657.A2, G.655, OM2, OM3, OM4 |
| Fiber color | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Tube | Gel-Filled PBT buffer tube |
| Tube color – inner layer | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow |
| Tube color – outer layer | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua, BlueBS, OrangeBS, GreenBS (BS Black strip) |
| Tube filling compound | Low-viscosity filling gel |
| Central strength member | Coated FRP rod |
| Core wrapping | Water-swellable tape |
| Peripheral strength members | Water-swellable glass yarns |
| Armouring | Corrugated steel tape, longitudinally under outer jacket |
| Outer jacket | UV resistant Halogen-free flame-retardant thermoplastic compound |
| Jacket thickness | 1.5 mm |
| Nominal outer diameter | 15.8 mm |
| Cable Weight (calc.) | 271 kg/km |
| Max. Tensile Loading (Short Term) | 4600 N |
| Max. Tensile Loading (Long Term) | 1450 N |
| Max. compressive loading | 2500/100 mm |
| Max. Impact loading | 25 Nm |
| Min. bend radius not load | 20 x OD |
| Min. bend radius load | 25 x OD |
| Operating temperature range | -40°C to +70°C |
| Storage temperature range | -40°C to +70°C |
| Installation temperature range | -15°C to +50°C |
| Water tightness | No water detected on free end |
| Class of fire reaction | Fca |
0335_OPK-U-MTFDS-288(24x1.7)LTGXH
