Cable for applications where there is a requirement for data communication by fiber optic and at the same time is needed power supply. Suitable for FTTA applications and CCTV systems.

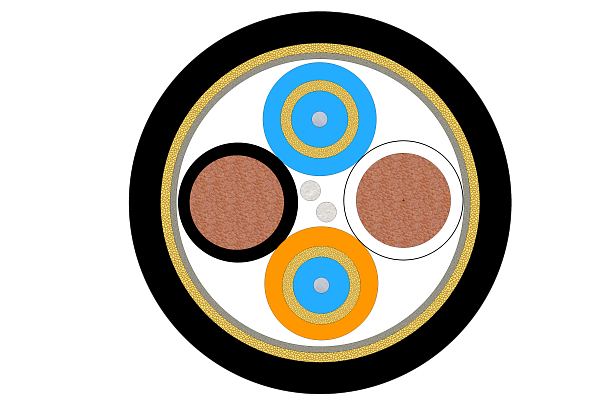

Hybrid Cable 2F + 2x CuSn
A combined data-and-power cable that delivers fiber connectivity and electrical feed in a single run. It simplifies planning, speeds installation, and reduces failure points. Ideal for FTTA radio/antenna links and CCTV systems at remote or hard-to-reach sites.
| Fibre count | 2 |
| Fibre Type | G.652.D, G.657.A1, G.657.A2, OM1, OM2, OM3, OM4 |
| Fibre colour | Natural |
| Buffer diameter | 0.9 mm |
| Buffer material | UV curable acrylate |
| Buffer colour | Blue |
| Simplex Colour | Blue, Orange |
| Simplex jacket | Thermoplastic FR-LSHF compound according to BS 7878:7 and DIN VDE 0207, part 24, type HM2 |
| Simplex diameter | 1.8 mm |
| Wire count | 2 |
| Wire | Stranded Tinned Copper, AWG 16 (19x0.3 mm) |
| Wire Insulation material | FEP |
| Wire Insulation colour | White, Black |
| Wire Insulation diameter | 1.9 mm |
| Core wrapping | Water-swellable tape |
| Strength members | Water-swellable Aramid yarns |
| Outer jacket | UV stable Flame-retardant TPU Outer Jacket (V-2 acc. to UL94) |
| Cable outer diameter | 7.3 [mm] |
| Maximum tensile loading (Short Term) | 500 [N] EN 60794-1-21-E1 |
| Maximum tensile loading (Long Term) | 80 [N] EN 60794-1-21-E1 |
| Max. compressive loading | 1500 [N/10cm] EN 60794-1-21-E3 |
| Max. Impact loading | 10 [Nm ] EN 60794-1-21-E4 |
| Min. bend radius not load | 10 [OD] EN 60794-1-21-E11 |
| Min. bend radius load | 15 [OD] EN 60794-1-21-E11 |
| Wire resistance | 14.6 [Ohm/km at 20°C] |
| Wire Insulation Spark Test 3000V/0.15 sec. | Pass |
| Test voltage 2000V underwater 1 hour at the room temp. | Pass |
| Operating temperature range | -40 to +70 [°C] EN 60794-1-22-F1 |
| Storage temperature range | -40 to +70 [°C] EN 60794-1-22-F1 |
| Water tightness | No water detected on free end EN 60794-1-22-F5 |
| Cable Weight (calc.) | 66 [kg/km] |
| Class of fire reaction | Fca EN 13501-6 |
| Cable Code (Ordering Code) | OPK-U-SPC-2(4×1,8)A9AHEU-xx-BK xx – fiber type (see Cable code datasheet) |
| Marking Method | Ink-Jet |
| Print legend | OPK –cable type – lot number- length marking per 1 m (customer print legend available on request) |
| Delivery length | 2000 m ±5% on plywood reel or solid wooden non-returnable drum |
Cable for applications where there is a requirement for data communication by fiber optic and at the same time is needed power supply. Suitable for FTTA applications and CCTV systems.
0025_OPK-U-SPC-2(4x1.8)A9AHEU
