Highly durable flexible cable for applications where there is a requirement for data communication by fiber optic and at the same time is needed power supply. Suitable for FTTA applications, CCTV systems or for connections of movable equipment.

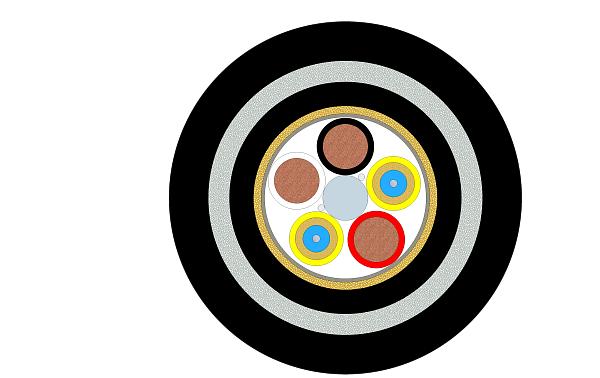

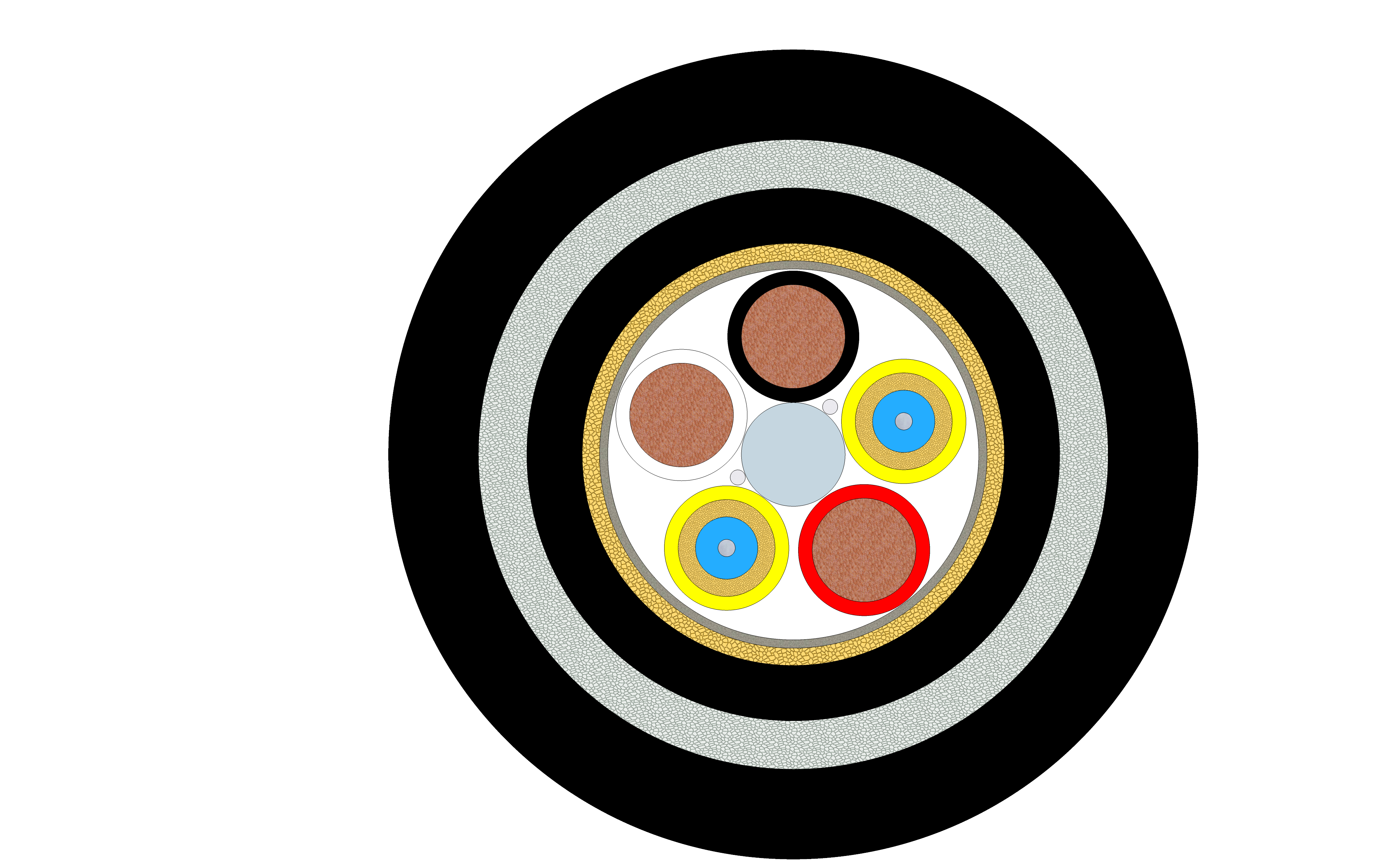

Highly Durable Hybrid Cable
Highly durable, flexible hybrid cable that carries fiber data and power in one run. Ideal for FTTA applications, CCTV systems, and connections to movable equipment.
|
Fibre count |
2 |
|
Fibre Type |
G.657.A1, G.657.A2 |
|
Fibre colour |
Natural |
|
Buffer diameter |
0.9 mm |
|
Buffer material |
UV curable acrylate |
|
Buffer colour |
Blue |
|
Simplex Colour |
Yellow (identified by numbers #1 a #2) |
|
Simplex jacket |
Halogen-free flame-retardant thermoplastic compound |
|
Simplex diameter |
1.8 mm |
|
Conductor count |
3 |
|
Conductor |
Stranded Tinned Copper, AWG 16 (19x0.3 mm) |
|
Wire Insulation material |
FEP |
|
Wire Insulation colour |
White, Black, Red |
|
Wire Insulation diameter |
1.9 mm |
|
Core wrapping |
Water-swellable tape |
|
Strength members |
Water-swellable Aramid yarns |
|
Inner jacket |
Flame-retardant TPU Outer Jacket (V-2 acc. to UL94) |
|
Inner jacket thickness |
0.8 mm |
|
Peripheral strength members |
Water-swellable glass yarns |
|
Outer jacket |
UV stable Flame-retardant TPU Outer Jacket (V-2 acc. to UL94) |
|
Outer jacket thickness |
1.3 mm |
|
Cable Code (Ordering Code) |
OPK-U-SPC-2(5×1,8)A9AEUGU-xx-BK xx–fiber type (see Cable code datasheet) |
|
Print legend |
Manufacturer –cable type – lot number- length marking per 1 m (customer print legend available on request) |
|
Delivery length |
2100 m±5% on plywood reel or solid wooden non-returnable drum |
|
Max. Loading (Short Term) |
8000 N EN 60794-1-21-E1 |
|
Max. Loading (Long Term) |
3500 N EN 60794-1-21-E1 |
|
Abrasion |
5N/10 000 cycles EN 60794-1-21-E2 |
|
Max. compressive loading |
5500 N/10cm] EN 60794-1-21-E3 |
|
Max. Impact loading |
27 Nm EN 60794-1-21-E4 |
|
Kink |
150 mm EN 60794-1-21-E10 |
|
Min. bend radius not load |
75 mm EN 60794-1-21-E11 |
|
Min. bend radius load |
150 mm EN 60794-1-21-E11 |
|
Torsion resistence |
±360° EN 60794-1-21-E7 |
|
Wire resistance |
14.6 Ohm/km at 20°C |
|
Wire Insulation Spark Test 3000V/0.15 sec. |
Pass |
|
Test voltage underwater 2000V/ 1 hour (room temp.) |
Pass |
|
Operating temperature range (static) |
-40 až +70°C EN 60794-1-22-F1 |
|
Operating temperature range (dynamic) |
-10 až +70°C EN 60794-1-22-F1 |
|
Storage temperature range |
-40 až +70°C EN 60794-1-22-F1 |
|
Freezing test |
Pass IEC 60794-1-22-F15 |
|
Aging test |
Pass IEC 60794-1-22-F9 |
|
Water tightness |
Pass EN 60794-1-22-F5 |
|
Cable Weight (calc.) |
66 kg/km |
|
Class of fire reaction |
Fca EN 13501-6 |
|
Static coefficient of friction (stainless steel - dry) |
0.73 |
0201_OPK-U-SPC-2(5×1.8)A9AEUGU
