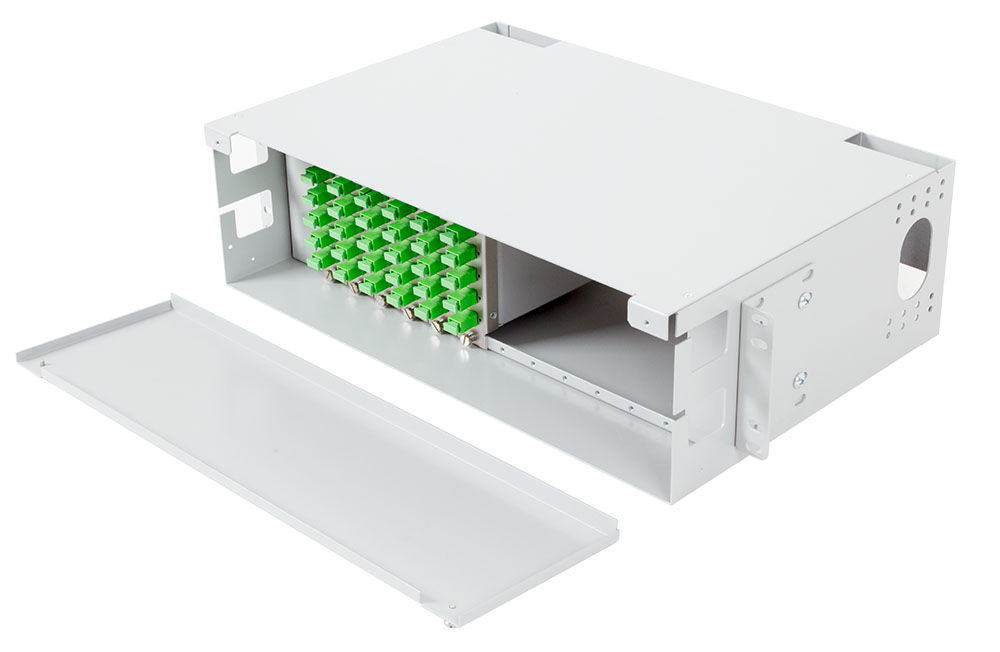

The OFDU-CAP cabinet is primarily intended for convenient placement of CAPM cassettes. The unified modular system enables easy storage and fastening CAPM cassettes and can be extended according to operator needs. The OFDU-CAP terminates up to 288 fibers in a 3U distribution frame. This unit can take up to 12 prewired CAPM cassettes.
OFDU-CAP
- Arranged termination of fibers in CAPM cassettes
- Easily removable front metal cover
- Up to 288 fiber termination
- Easy access to each cassette
- Prewired CAPM cassettes include connectorized fiber pigtails and adapters
- Durable powder coat finish – RAL 7038, RAL 9006
|
PART NUMBER |
RACK UNIT |
DIMENSIONS (H x W x D) mm |
WEIGHT (kg) |
|
OFDU-CAP |
3U |
133 x 432 x 305 |
1.9 |
|
OFDU-CAP – Typical fiber capacity |
||
|
Cassette |
Pieces |
Fibers (max.) |
|
CAPM |
1 |
12 (24) |
|
CAPM |
3 |
36 (72) |
|
CAPM |
6 |
72 (144) |
|
CAPM |
9 |
108 (216) |
|
CAPM |
12 |
144 (288) |
Note: CAPM prewired cassette with pigtails and adapters - see datasheet: CMS_22-01_EN-CAPM
This unit can take up to 12 prewired CAPM cassettes.
CMS_02-14_EN-OFDU-CAP
