The OPTOKON OSW Optical Switches are based on opto-mechanical technology with proven reliability. With the state-of-the-art technology performance of OSW Optical Switches is optimized for a wide range of fiber optic applications.

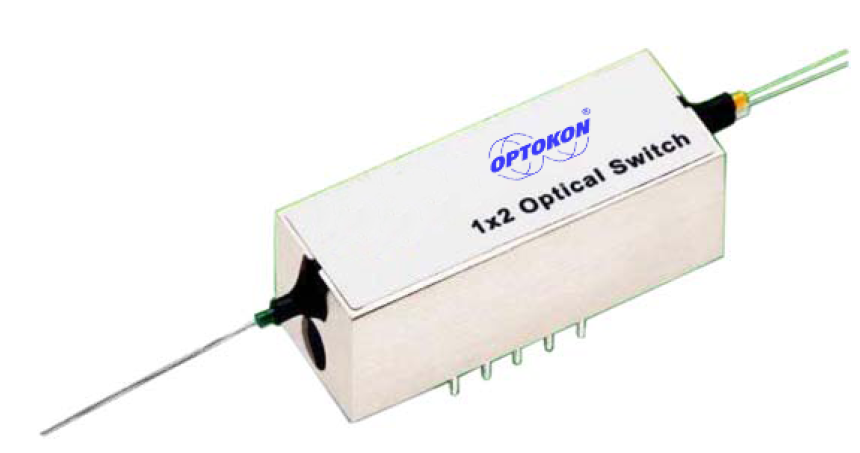

OSW 01x02 Optical Switch
- Low insertion loss
- High port isolation
- Small size
- High reliability
- SM and MM available
- Low PDL
- RoHS compliance
|
Electrical |
Singlemode |
Multimode |
|
Coil resistance (Ω) |
125 ± 10% |
|
|
Operating current (mA) typ. |
40 ± 10% |
|
|
Operating voltage (V) typ. |
5.0 |
|
|
Operating voltage (V) range |
4.5 – 5.5 |
|
|
Power consuption (W) typ1. |
0.2 |
|
|
|
|
|
|
Electro-Optical |
|
|
|
Wavelength range (nm) |
1280 – 1340 |
850 / 1300 |
|
1520 – 1625 |
||
|
Insertion loss (dB) typ. |
≤ 0.6 |
≤ 0.5 |
|
Insertion loss (dB) max. |
≤ 1.0 |
≤ 0.8 |
|
Back reflection (dB) |
≤ -45 |
- |
|
PDL (dB) |
≤ 0.1 |
- |
|
Crosstalk (dB) |
≤ -80 |
|
|
Switching time (ms) |
≤ 5 |
|
|
Repeatability (dB) |
± 0.05 |
|
|
|
|
|
|
Mechanical & Environmental |
|
|
|
Operating temperature (°C) |
-5 to +70 |
-20 to +75 |
|
Humidity (% RH) |
5 - 85 |
|
|
Durability (cycles) |
> 107 |
|
|
Dimensions (mm) LxWxH |
30x11x8.8 |
|
|
Weight (g) |
< 20 |
|
Note:
1) When +5 V DC signal is applied to only coil
2) All specifications referenced without connectors
3) Measured at 1550 nm, add 0.2 dB for IL at 1310/1550 nm dual wavelength
- Telecommunications – optical network protection and restoration
- Reconfigurable add/drop multiplexers
- Wavelength router
- Optical network monitoring
- Transmission equipment protection
- Testing instruments
OSW_01-09_EN-OSW series
