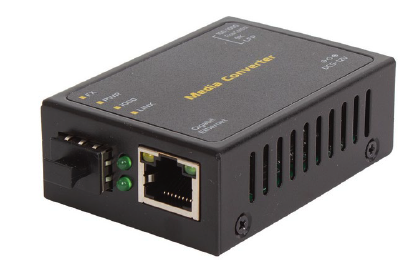

CS-1000C-SFP, Mini-size 1G media converter with SFP slot

CS-1000C-SFP, Mini-size 1G media converter with SFP slot

The CS-1000C-SFP is mini-size compact 1000BASE optical/Ethernet media converter that enables the conversion of 10BASE-TX and 100/1000BASE-TX electrical signals into 1000BASE-X optical signals. This allows for the transmission of Ethernet signals over long distances in a duplex manner using optical fiber. CS-1000C-SFP has an SFP optical module interface without optical transceiver module mounted. The user can choose a variety of SFP optical modules to use, such as multi-mode, single-mode.

CS-1000C-SFP provides auto MDI/MDI-X on its TP port and the DIP switch to confifigure the Link Fault Pass through function (LFP). The LFP function includes the Link Loss Carry Forward (LLCF)/Link Loss Return (LLR). LLCF/LLR can immediately alarm administrators the problem of the link media and provide effificient solution to monitoring the net.

  • Features
  • Specifications
  • Application
  • Documents
  • 1000BASE-X Fiber to 10/100/1000BASE-X UTP Converter
  • • Fiber optic – SFP slot
  • • LED signalization
  • • Forward 9K mode or Store and forward mode1
  • • Jumbo frame 9K support
  • • Auto-Cross over for MDI/MDIX in TP port
  • • Support Link Fault Pass Through (LFP)

Parameter Value
Product description 1000BASE-X Fiber to 10/100/1G BASE-T UTP Media Converter
Standards IEEE 802.3, 10BASE-T; IEEE 802.3u, 100BASE-TX; IEEE 802.3ab, 1000Base-T; IEEE 802.3z, 1000Base-SX/LX
Ports 1 × 10/100/1000Base-T port; 1 × 1000Base-SX/LX port
Mode selection Forward mode / Store and forward mode
Copper interface RJ-45 port (Auto-MDI/MDI-X) Twisted Pair
Optical interface SFP slot
Special functions LFPT; 9k Jumbo frames; Adaptive 100M/1000M by switch function
LED indicators PWR; TP LINK/ACT, 1000; Fiber LINK/ACT
DC power connector Jack 5.5/2.5 mm or 5.5/2.1 mm
DC power voltage 5–12 V DC, 1 A
AC/DC power adaptor 85–265 V AC / 50 Hz
MTBF More than 50,000 hours
Temperature (operation) 0 to +50 °C, or optionally −40 to +85 °C
Temperature (storage) −40 to +70 °C
Humidity 5 to 95%
Dimensions, weight 69 × 50 × 25 mm, 100 g
  • Security & CCTV: linking cameras and recorders over longer runs; perimeter and parking lots.
  • Access control & building systems: badge readers, intercoms, elevators, BMS/HVAC panels.
  • Enterprise & campuses: office floors, classrooms, dorms; inter-building links.
  • Industrial sites: production lines, kiosks, terminals, legacy controllers.
  • Utilities & SCADA: water/wastewater plants, substations, pumping stations.
  • Transportation hubs: airports, stations, tunnels; signage and monitoring.
  • Retail & hospitality: POS lanes, back-office links, digital signage.
  • Healthcare & education: wards, labs, labs/classroom networks.
  • Government & defense facilities: control rooms, checkpoints, field posts.
  • Smart city: traffic cabinets, public Wi-Fi backhaul, city surveillance.
