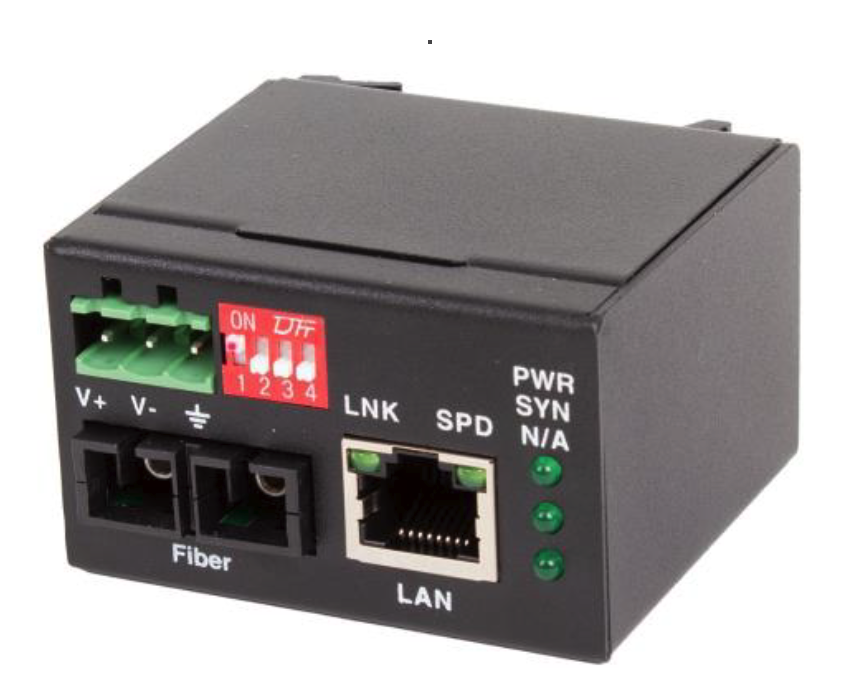

CS-1000C/E/E, Mini size 1G industry media converter

CS-1000C/E/E, Mini size 1G industry media converter

The CS-1000C/E series are small size Gigabit Ethernet - fiber converters designed to be media interfaces between 10/100/1000Base-T Ethernet copper pairs cable and 1000Base-X fiber optics cable. They feature a RJ-45 connector, and a pair of fiber optic connectors. The Gigabit Fiber Converters give you the freedom to extend your 10/100/1000 Mbps cabling distance by allowing connectivity 2 kilometers for multimode optical fiber and 20 kilometers using single mode optical fiber.

LED indicators signal the power status of the converter, the Ethernet port and the FX port activity.

The CS-1000C/E provides auto MDI/MDI-X on its TP port and the DIP switch to configure the Link Fault Pass through function (LFP). The LFP function includes the Link Loss Carry Forward (LLCF)/Link Loss Return (LLR). LLCF/LLR can immediately alarm administrators the problem of the link media and provide effificient solution to monitoring the network.

  • Features
  • Specifications
  • Application
  • Documents
  • 1000BASE-X Fiber to 10/100/1000BASE-X UTP Converter
  • or 100BASE-FX Fiber to 10/100BASE-X UTP Converter1
  • LED signalization
  • Support VLAN super-long data packet transmission, and match use with switch machine supporting IEEE802.1Q protocol, MTU≥10240
  • Auto-Cross over for MDI/MDIX in TP port
  • Auto-Negotiation or Manual mode in TP port
  • Support Link Fault Pass Through (LFP) Function1
  • DIN rail mount holder

Parameter Value
Standards IEEE 802.3 10Base-T, 802.3u 100Base-TX and 100Base-FX, 802.3ab 1000Base-T, 802.3z 1000Base-X
Fiber cable Multimode: 50/125, 62.5/125 μm; Single mode: 9/125 μm
Fiber connector Duplex SC
UTP connector RJ-45
LED display PWR, SYN, LNK, SPD
Dimensions 53 × 61 × 38 mm
Weight 100 g
DC power DC 12 V / 0.15 A
Output of AC/DC power adaptor 1 A @ 5 V DC
MTBF More than 50,000 hours, in accordance with the standard of telecom operation
Temperature (operation) −40 to +85 °C
Temperature (storage) −40 to +85 °C
Humidity 5 to 95% not condensing
RoHS compliant
  • Enterprise & campuses: building-to-building links, office floors, classrooms, dorms.
  • Industrial sites: production lines, control rooms, kiosks, terminals.
  • Security & CCTV: long camera runs, perimeter monitoring, guard posts.
  • Transportation hubs: airports, rail/metro stations, tunnels, signage backhaul.
  • Utilities & SCADA: plants, substations, pumping stations, pipelines.
  • Government & defense: control centers, checkpoints, secure facilities.
  • Healthcare & education: wards, labs, lecture capture, inter-building video/data.
  • Retail & hospitality: POS networks, digital signage, back-office connectivity.
  • Events & temporary setups: trade shows, field deployments, pop-up sites.
