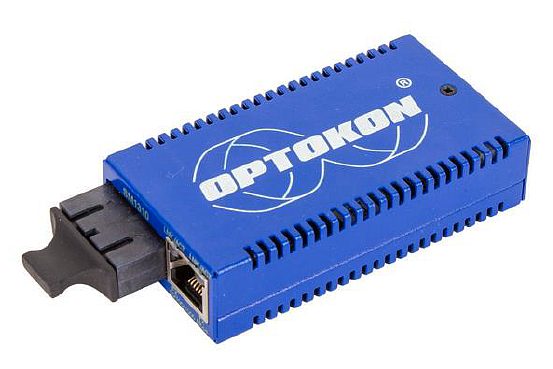

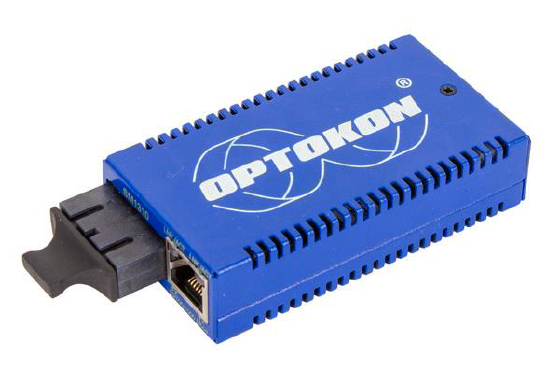

MCA-1000 1G, media converter

MCA-1000 1G, media converter

The MCA-1000 series are small size Gigabit Ethernet - Fiber converters designed to be media interfaces between 10/100/1000Base-T Ethernet copper pairs cable and 1000Base-X fiber optics cable. They feature a RJ-45 connector, and a pair of fiber optic connectors. The Gigabit Fiber Converters give you the freedom to extend your 10/100/1000 Mbps cabling distance by allowing connectivity 2 kilometers for multimode optical fiber and 20 kilometers using single mode optical fiber.

LED indicators signal the Ethernet port and the FX port activity.

  • Features
  • Specifications
  • Application
  • Documents



  • 1000BASE-X Fiber to 10/100/1000BASE-X UTP Converter
  • Single mode and multimode application
  • LED signalization
  • IEEE 802.3af compliant PoE-PD
  • Jumbo frame 16K support
  • Auto-Cross over for MDI/MDIX in TP port
  • Support Link Fault Pass Through (LFPT) Function
  • Supports multiple power options

Parameter Value
Standards IEEE 802.3 10Base-T, 802.3u 100Base-TX, 802.3ab 1000Base-T, 802.3z 1000Base-X
Packet length Jumbo frame 16K support
Fiber cable Multimode: 50/125, 62.5/125 μm; Single mode: 9/125 μm
Wavelength 1310 nm
Fiber connector MC-1000: duplex SC; MC-1000-SFP: duplex LC
UTP connector RJ-45
LED display TPL LINK/ACT; Fiber LINK/ACT
Dimensions 21 × 46 × 85 mm
Weight 320 g
DC power input connector Terminal block: 7 to 50 V DC; DC jack: 5 V DC
Temperature (operation) −25 to +75 °C
Temperature (storage) −40 to +85 °C
Humidity 5 to 95% not condensing
MTBF 100,000 hrs
RoHS compliant
  • Enterprise & campuses: office floors, inter-building links, classrooms, dorms
  • Industrial facilities: production lines, control rooms, kiosks, terminals
  • Security & CCTV: long camera runs, perimeter monitoring, guard posts
  • Transportation: airports, rail/metro stations, tunnels, signage backhaul
  • Utilities & SCADA: plants, substations, pumping stations, pipelines
  • Government & defense: control centers, checkpoints, secure sites
  • Healthcare & education: wards, labs, lecture halls, research spaces
  • Retail & hospitality: POS networks, digital signage, back-office links
  • Events & temporary setups: trade shows, pop-ups, field deployments
