We offer an extensive range of pre-terminated cable assemblies that are 100% tested to ensure conformance with your specifications. These assemblies are used for measuring and manufacturing of fiber optic components and optical network testing.
The Master patchcord is equipped with a Master connector according to the specifications below. The master connector is marked and specified with its Serial Number, which ensures traceability of transmission and geometrical parameters. The second connector is a standard type. For the hybrid patchcord version different types of master and standard connector types are also available.

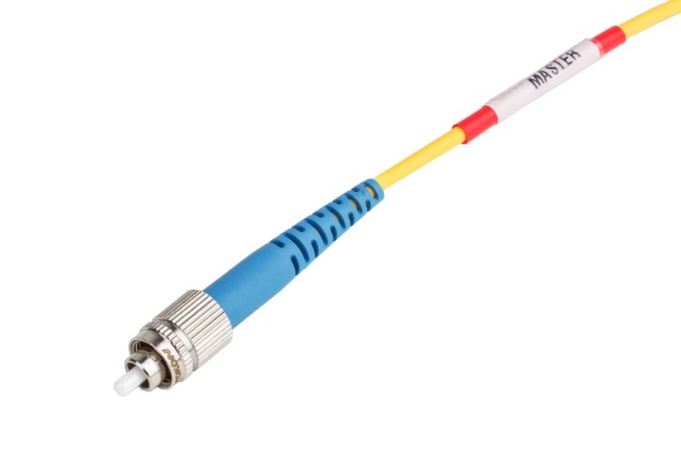

Master FC Patchcord
- ISO 9100 approved
- 100% Return loss test
- 100% Visual Inspection
- 100% Insertion loss test

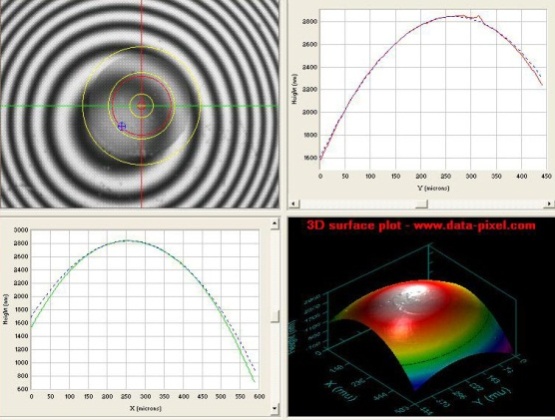

- 100% Interferometric test
- Manufactured to meet IEC/EN Standards
- Batch tracebility
| Specifications: | ||

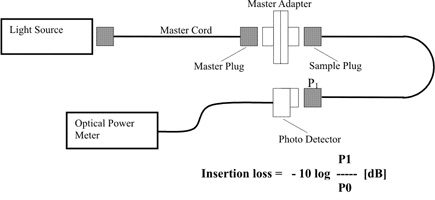

| Insertion loss2 (IL) (IEC 61300-3-4) |
SM Ultra PC | SM Angle PC |
| 0.10 dB max | 0.10 dB max | |
|
Return loss2 (RL) |
≥ 55 dB1 | ≥ 70 dB1 |
| PDL2 | max 0.1 dB | |
|
Strain relief |
max 100 N | |
| Allowable input power | max 1.0 W | |
| Strain relief | 100 N | |
| Operating temperature | -30°C to +70°C | |
| Durability | min 1000 cycles | |
| Assembly procedure | glue and polish | |
| Connection | physical contact | |
| Lock mechanism | coupling nut | |
| Standards | JIS 5970, EIA/TIA FOCIS, IEC 61754-13, EN 50377-2, GR-326-CORE | |
| Ferrule material | full ceramic zirconia | |
| Connector material | zinc alloy, nickel plated | |
| Adapter material | zinc alloy, nickel plated, zirconia sleeve | |
| Connector lifetime | 20 years in environment defined by EN 61753-1:2007, category C |
- Telecom
- LAN, WAN
- CATV, sensor systems, measuring technique
- Utilities, railways
