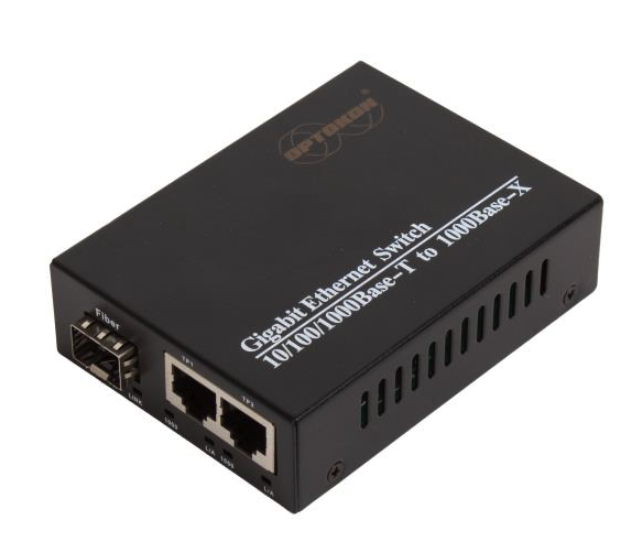

CS-G01F02M, 1x1000Base-X to 2x10/100/1000Base-T

CS-G01F02M, 1x1000Base-X to 2x10/100/1000Base-T

CS-G01F02M is a high-performance fiber media converter designed to facilitate seamless conversion between Ethernet twisted pair and optical signals. It features 1x1000M SFP port and 2x10/100/1000M RJ45 ports, enabling robust network connectivity with extended transmission distances of up to 100 km.

Engineered for exceptional reliability, CS-G01F02M includes link fault alarms, a wide operating temperature range, and integrated lightning protection for both ports and power supply. These advanced features make it particularly well-suited for outdoor monitoring applications in rail transit, smart cities, and intelligent transportation systems.

  • Features
  • Specifications
  • Application
  • Documents



  • Input Voltage: 5 - 12V DC
  • Operating Temperature: -10℃ ÷ +55℃
  • Shell: Fan-less design
  • MTBF: 100 000 hours

Parameter Value
Provider mode ports – fixed port 2× 10/100/1000M RJ45, 1× 1000M SFP
Provider mode ports – power interface DC interface
LED indicator 1 Optical port rate indicator
LED indicator 2 Power indicator light
LED indicator Link/Act Link status indicator
Cable type – Twisted-pair 0–100 m (CAT5e, CAT6)
Cable type – Single-mode optical fiber 20/40/60/80/100 km
Cable type – Multi-mode optical fiber 550 m
Electrical – input voltage 5 ÷ 12 V DC
Electrical – total power consumption ≤ 6 W
Layer 2 – switching capacity 16 G
Layer 2 – packet forwarding rate 14.388 Mpps
Layer 2 – MAC address table 2K
Performance – buffer 1 M
Performance – forwarding delay 5 μs
Performance – MDX/MDIX Support
Performance – jumbo frame Support 9 Kbytes
Environment – operating temperature −10 °C ÷ +55 °C
Environment – storage temperature −40 °C ÷ +75 °C
Environment – relative humidity 5% ÷ 95% (non-condensing)
Environment – thermal methods Fan-less, natural cooling
Environment – MTBF 100,000 hours
Mechanical – product size 93 × 71 × 27 mm
Mechanical – installation method Desktop/Wall-mount
Mechanical – weight 0.2 kg
Certificates CE/FCC/RoHS
  • Smart city: roadside cabinets, intersections, public Wi-Fi/CCTV backhaul
  • Intelligent transportation: highways, tunnels, toll plazas, variable message signs
  • Rail transit: stations, platforms, trackside cabinets, depots, parking areas
  • Security & CCTV: perimeter cameras, PTZ links, remote guard posts
  • Utilities & energy: substations, water/pumping stations, solar/wind farms
  • Industrial sites: production lines, warehouses, outdoor kiosks and terminals
  • Campuses & enterprises: inter-building links, parking lots, large venues
  • Events & temporary setups: festivals, construction sites, pop-up monitoring
