The OPTOKON GP-LP-LX-C++ transceiver with supports data rate of typical 2.488 Gbps for GPON OLT application up to 20km transmission distance, it’s designed meeting with ITU-TG.984.2 Class C++ specifications. SC rececptacle is for opticalinterface.

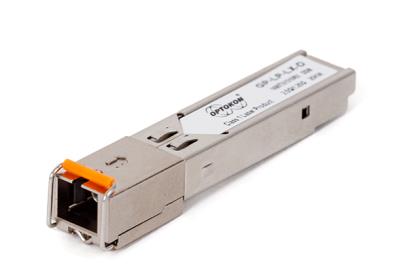

GP-LP-LX-C++
- SC Bi-Di SM transceiver 1.25Gbps Upstream/2.5Gbps Downstream
- Complies with ITU-T G.984.2 Class C++

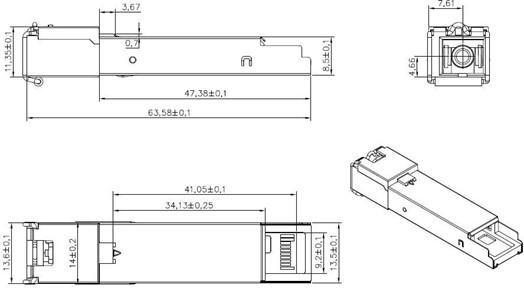

- SFP package with SC Receptacle
- 1490nm continuous-mode 2.5Gb/s DFB transmitter
- 1310nm Burst-mode 1.25Gb/s APD-receiver
- Single +3.3V power supply, hot-pluggable
- Compliant with SFP MSA and SFF-8472
- Complies with Telcordia (Bellcore) GR-468-CORE
- DDM functions

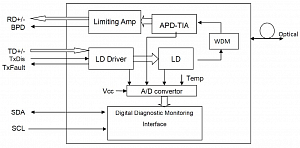

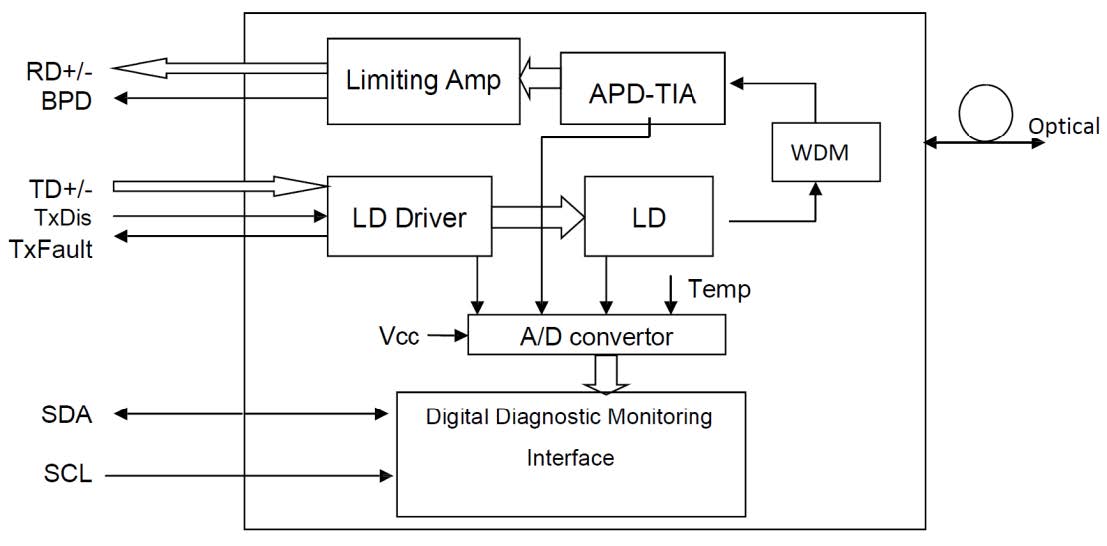

The module is contained in a SFP package with SC/APC receptacle connector. GP-LP-LX-C++ consists 1490nm DFB laser, InGaAs APD, preamplifier and WDM filter in a high-integrated optical sub-assembly, and it transmit up to 2.5Gbps of continuous data at 1490nm, and receives 1.25Gbps burst-mode data at 1310nm. The module data link up to 20km in 9/125um single mode fiber.
The transceiver GP-LP-LX-C++ provides digital diagnostic information of its operating conditions and status, including transmitting power, laser bias, receiver input optical power, module temperature, and supply voltage.
Product Applications: GPON OLT for P2MP application
